Hand Lifting Tool Orange Lifting Chain Pulley Block Shuangyan Brand
Model: HSZ-CA 2000KGS / 2 TON
Factory Price, Wholesale
Hand Chain Hoist Introduction
2 Ton Hand Lifting Tool Orange Lifting Chain Pulley Block is with high strength and quality triangle-type lifting chain tool for high-end international lifting market, with excellent inner structure and exquisite outline, giving users the best experience.
2 Ton Hand Lifting Tool Orange Lifting Chain Pulley Block is originally produced by Chongqing Kinglong Machinery Co., LTD for 55 years, with mature craftsmanship, imported chain making machines, skilled workers, reliable raw materials sources, perfect quality control, guarantee high quality and delivery in time.
Popular Type Triangle Type Manual Chain Pulley Block for Lifting Sizes in Details
| Model | | HSZ0.5-K | HSZ1-K | HSZ1.5-K | HSZ2-K | HSZ3-K | HSZ5-K | HSZ10-K | HSZ15-K | HSZ20-K |
| Capacity | Ton | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 |
| Lift Height | M | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Proof Load | Ton | 0.63 | 1.25 | 2 | 2.5 | 4 | 6.3 | 12.5 | 20 | 25 |
| Hand Chain Full Pulling Load | N | 260 | 323 | 356 | 390 | 370 | 410 | 436 | 460 | 440 |
| Load Chain Fall | | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 6 | 8 |
| Diameter of Load Chain | mm | 5 | 6 | 7.1 | 8 | 7.1 | 9 | 10 | 10 | 10 |
Operation Instruction for Hand Lifting Tool Orange Lifting Chain Pulley Block for Lifting
Before using, the product should be checked carefully on following spare parts, such as hooks, load chain, brake device and lubrication of the block. Only everything is under nomal condition, the chain pulley block can be put into operation.
Six rules should be followed for safe operation:
1. Don't lift any load exceeding rated capacity of the chain block.
2. Don't pull the goods or load up too high or too low.
3. Don't drag aslant the load.
4. To avoid any accident, working or passing under a lifting load is banned.
5. Don't use the chain block when the load chain is kinking.
6. In case of the hand chain failing to move, don't pull it voilently, but stop using it immidiately, then to check and maintain.
Our Main Products
Hand chain hoist, 0.5 Ton - 50 Ton available
Lever chain hoist, 0.25 Ton - 9 Ton available
Electric chain hoist, 0.5 Ton - 50 Ton available
Plain Trolley 0.5 Ton - 10 Ton Available
Geared Trolley 0.5 Ton - 10 Ton Available
lifting chains, G80/G100 as request, 4mm,6mm,7.1mm,8mm,9mm,10mm, 11mm, etc
Chain sling with black coating, galvanized, and golden color

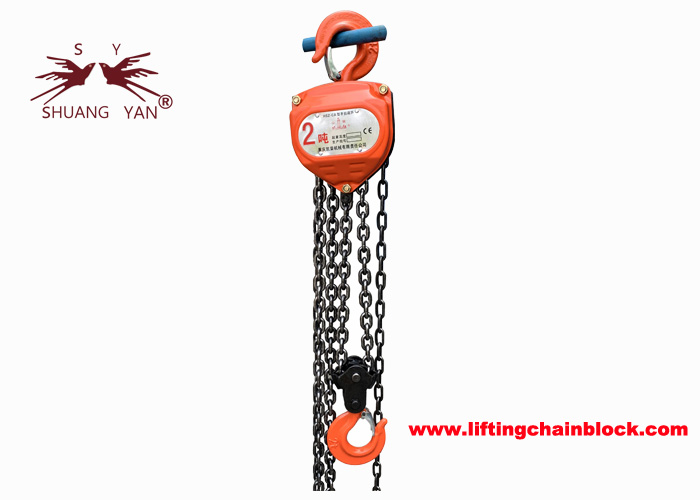

2 Ton Hand Lifting Tool Orange Lifting Chain Pulley Block for Lifting Pictures
Factory Brief Introduction
We, Chongqing Kinglong Machinery Co., LTD, located in Chongqing, China, occupies an area of 27,000 square meters, among which the workshop has 14,000 square meters, is dedicated to manufacturing material handling tool and lifting tool such as hand chain hoist, lever chain hoist, load chain and monorail trolley for 55 years with advanced mature techniques and rich experience.
If you are interested in any product, please email to us. We will handle with your inquiry as early as possible with our profession!
